Module I Battery Case - CBSTC5845

Proven Safety for Battery Storage and Shipping

The premier solution for preventing and containing hazardous battery fires. The CellBlock 5845 Module I Case is capable of accommodating large-format batteries and offers extreme protection against lithium-ion thermal events with 360° fire suppression coverage for all of its contents.

A double-walled system is paired with CellBlock’s proprietary fire panels for exceptional thermal protection. The pressure relief system mitigates smoke and fumes and eliminates risk of explosion due to over-pressurization.

• UN rated and Special Permit 20549 and 21442 authorized Safe and compliant transportation of batteries, including damaged, defective, and prototype.
• P911/LP906 Tested and Certified
• CellBlockEX Deployment
• FCP Technology
• Equipped with heavy-duty stabilizing locking feet and fork lift glides
• Optional battery tray
• Offers thermal and ballistic protection
• Safe on-site storage of batteries

• OPTIONAL fire-suppression pillows
• OPTIONAL TAS (Thermal Alert System)


CONTACT US FOR PRICING - CellBlock offers a variety of cabinet sizes. If interested in the program, email us with your specifications.

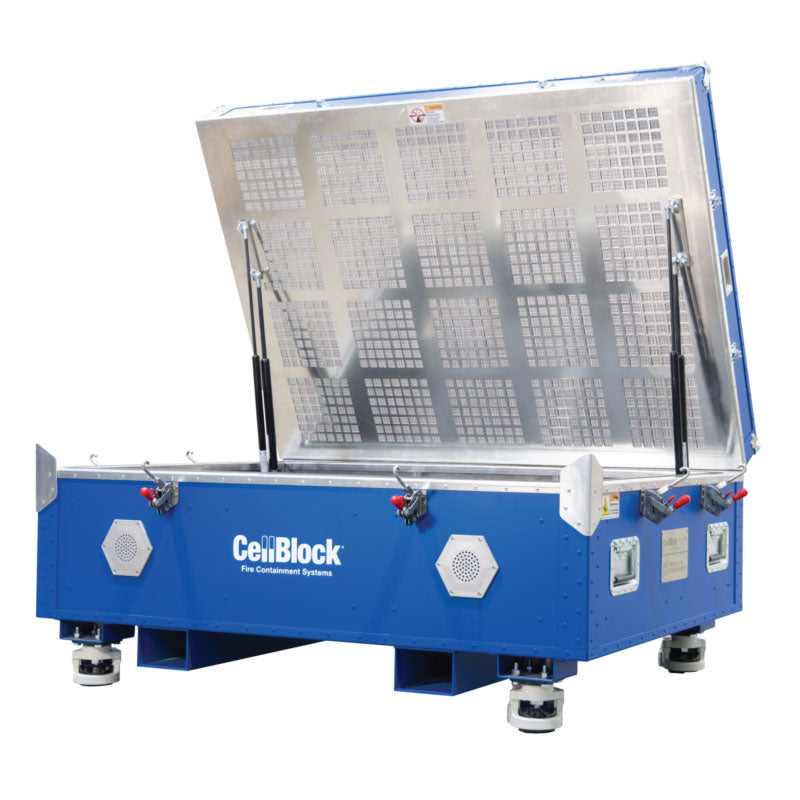

Specifications: (seen in photo)

ECR (Energy Containment Rating): 20 kWh
UN Mark: 50B/X/S/* **/USA/M6484/0/966 (** year of manufacture)
Exterior: 64” x 46” x 28.3”h (162.6cm x 116.8cm x 71.9cm)
Interior: 55.5” x 38.5” x 14.5”h (141cm x 97.8cm x 36.8cm)
Tare Weight: 502 lbs (228 kg)
Maximum Content Weight: 1627 lbs (738 kg)
Gross Weight Limit: 2130 lbs (966 kg)

DOWNLOAD BROCHURE

Please inquire about delivery times.
