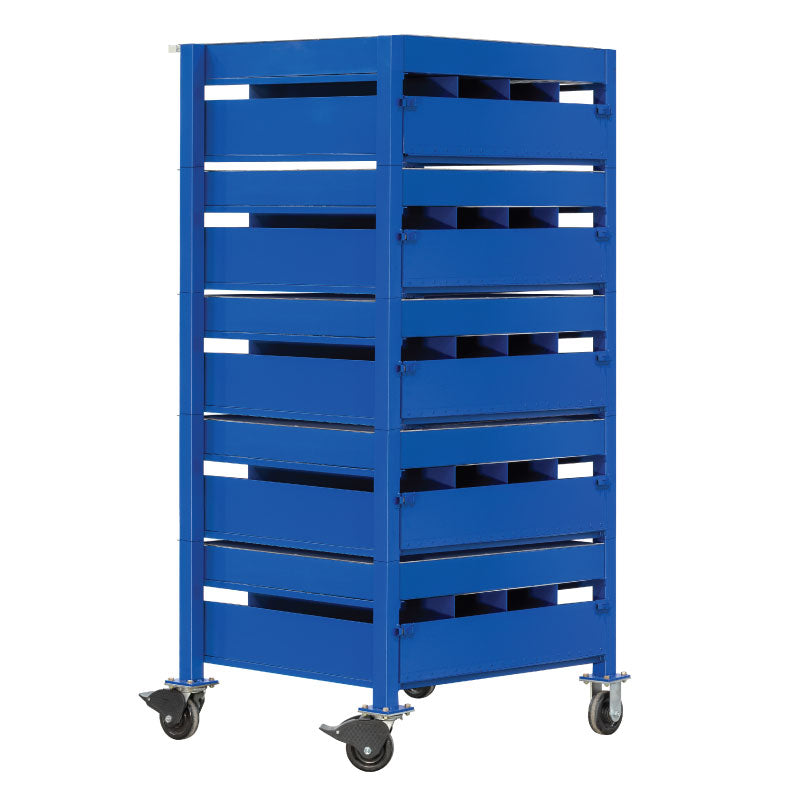

Safe Charge Battery Rack - 3036 Series

Safe E-Mobility Charging Solutions

Without the appropriate separation and safety measures in place, charging multiple high watt hour batteries poses a dormant but potentially devastating threat. CellBlock FCS’s new Safe Charge racks were designed to accommodate e-bike batteries and to safely suppress fires in the event of a thermal runaway.

• Engineered to comply with fire codes and exceed fire marshal expectations of safety
• First charging and storage system approved for exemptions from FDNY FC 309.3, including spacing requirements

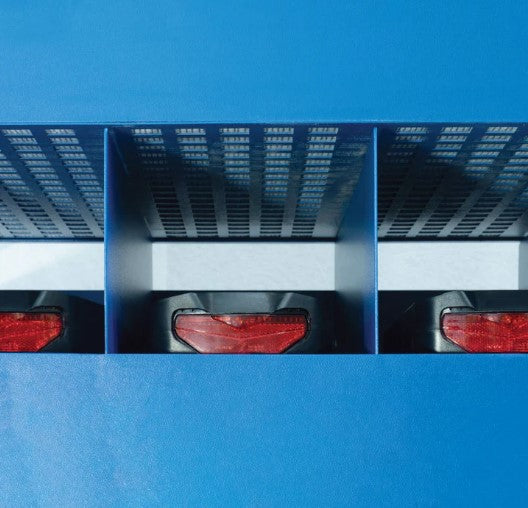

• Fire resistant barriers between each battery charging bay
• CellBlockEX’s brilliantly simple deployment system halts propagation, preventing the spread of fire to adjacent batteries
• Powder-coated steel and aluminum construction
• Rechargeable extinguishing system
• Equipped with heavy-duty locking wheels.

Best-in-Class Textiles For Extreme Protection

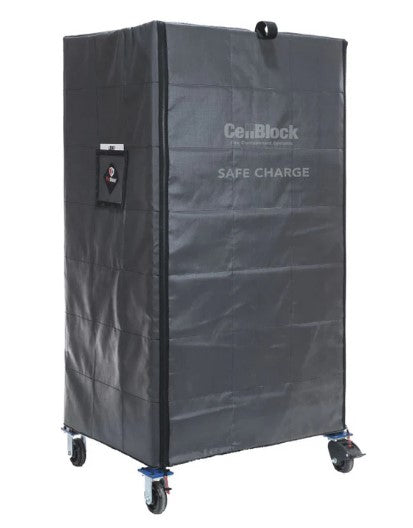

The Safe Charge FireShield offers additional protection while providing easy access during business hours. Constructed from CellBlock’s proprietary textiles, these covers have been tested at over 1000ºC (1832°F) for 30 minutes.

• Back panel features a single zipper for access to power strips and charger cords
• Front panel zips on either side and rolls up when access is required
• When fully zipped, the cover will contain flames and projectiles during a thermal runaway situation
• Engineered to mitigate explosion potential


CellBlock offers a variety of cabinet sizes. If interested in the product, email us and we are happy to discuss options.

Battery Rack Specifications Example:

ECR (Energy Containment Rating): 22 kWh* (1100 Wh per bay)
Exterior: 40.5” x 32” x 77”h (102.9 cm x 81.3 cm x 195.6 cm)*
Battery Bay Interiors: 8.9” x 29.9” x 8.3” (20.3 cm x 75.9 cm x 21 cm)
Number of Bays: 4 per tier
Tare Weight: 750 lbs. (340 kg)*

*5-tier system

DOWNLOAD BROCHURE

Please inquire about delivery times.
