XLarge I Battery Case - CBSTC052

Proven Safety for Battery Storage and Shipping

The premier solution for preventing and containing hazardous battery fires. The CellBlock 052 Case is capable of accommodating large-format batteries and offers extreme protection against lithium-ion thermal events with 360° fire suppression coverage for all of its contents.

A double-walled system is paired with CellBlock’s proprietary fire panels for exceptional thermal protection. The pressure relief system mitigates smoke and fumes and eliminates risk of explosion due to over-pressurization.

• FCP Technology
• CellBlockEX Deployment
• Equipped with heavy-duty stabilizing locking feet and fork lift glides
• Optional battery tray
• Offers thermal and ballistic protection
• Safe on-site storage of batteries
• UN rated and Special Permit 20549 and 21442 authorized Safe and compliant transportation of batteries, including damaged, defective, and prototype.
• P911/LP906 Tested and Certified
• OPTIONAL fire-suppression pillows
• OPTIONAL TAS (Thermal Alert System)

CellBlock offers a variety of cabinet sizes. If interested in the product, email us and we are happy to discuss options.

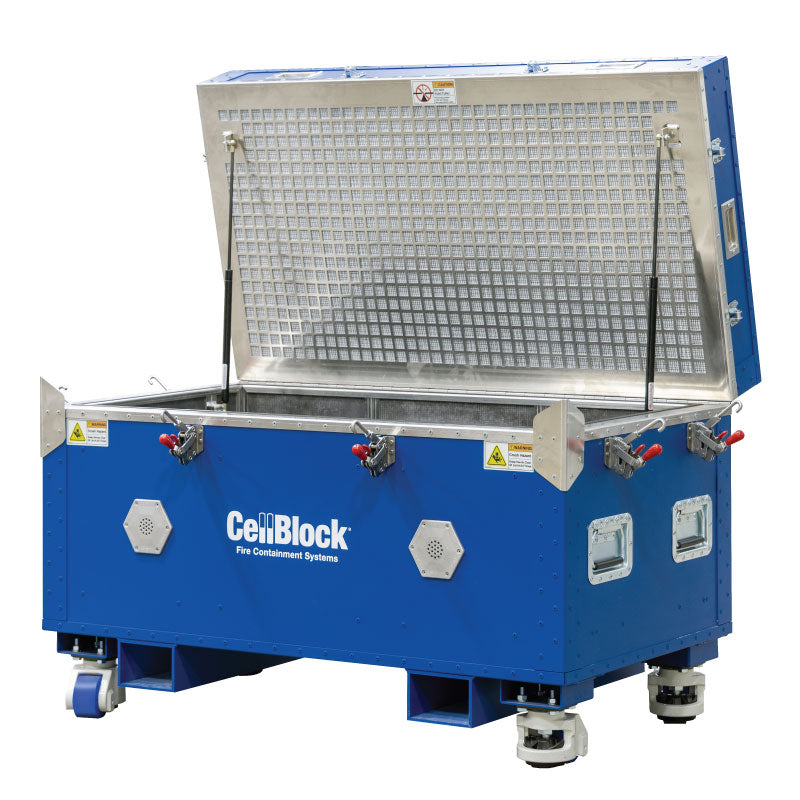

Specifications: (shown in photo)

ECR (Energy Containment Rating): 15 kWh
UN Mark: 4B/X400/S/**/USA/M6484 (** = year of manufacture)
Exterior: 53” x 29.4” x 32.3”h (134.6cm x 74.7cm x 82cm)
Interior: 46.8” x 23.5” x 18.5”h (118.9cm x 59.7cm x 47cm)
Tare Weight: 208 lbs (94 kg)
Maximum Content Weight: 674 lbs (306 kg)
Gross Weight Limit: 882 lbs (400 kg)

DOWNLOAD BROCHURE

Please inquire about delivery times.
